Grand Cantilever Cabana

MODEL: ST03-CV-TF-22.5x15-8 - Grand Cantilever Cabana

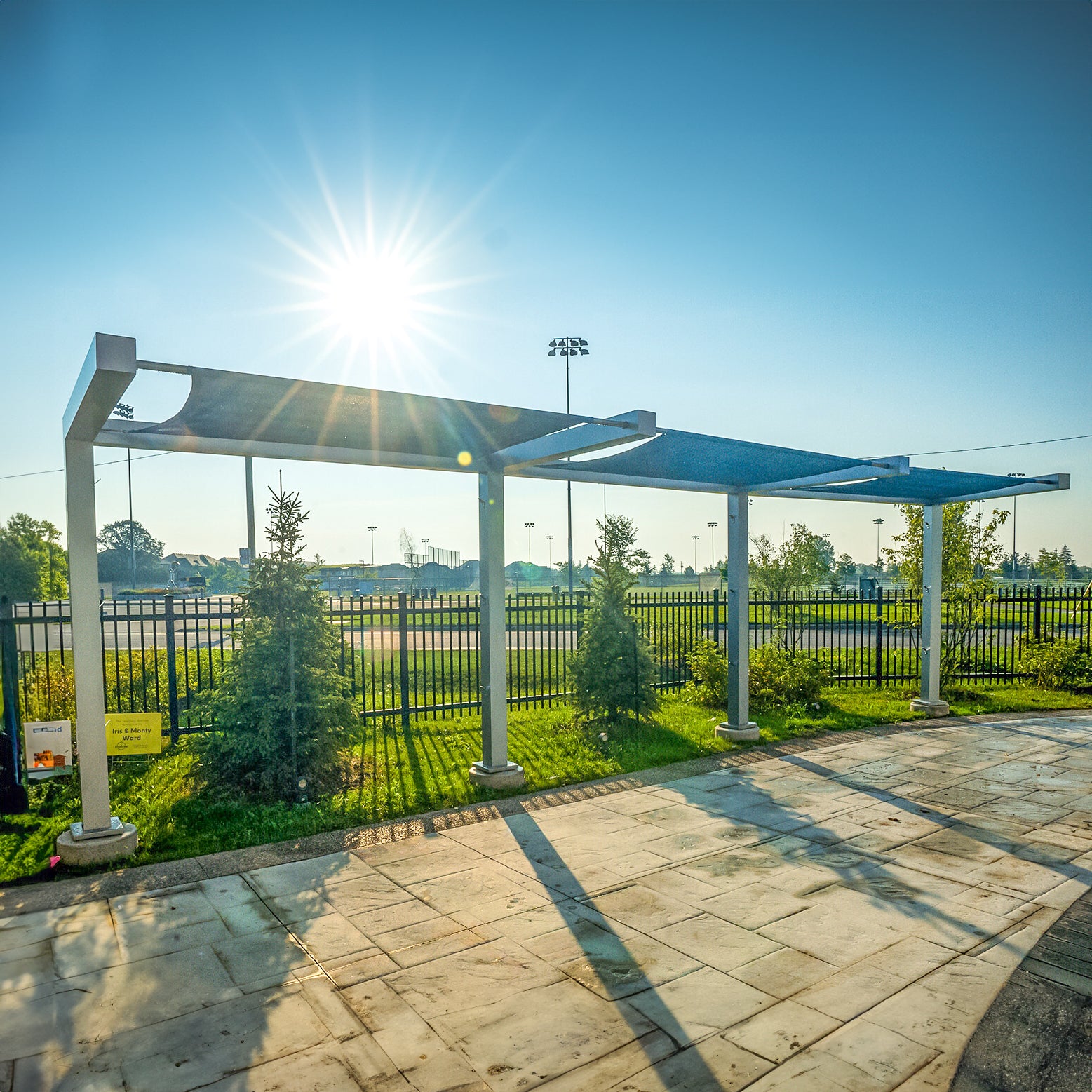

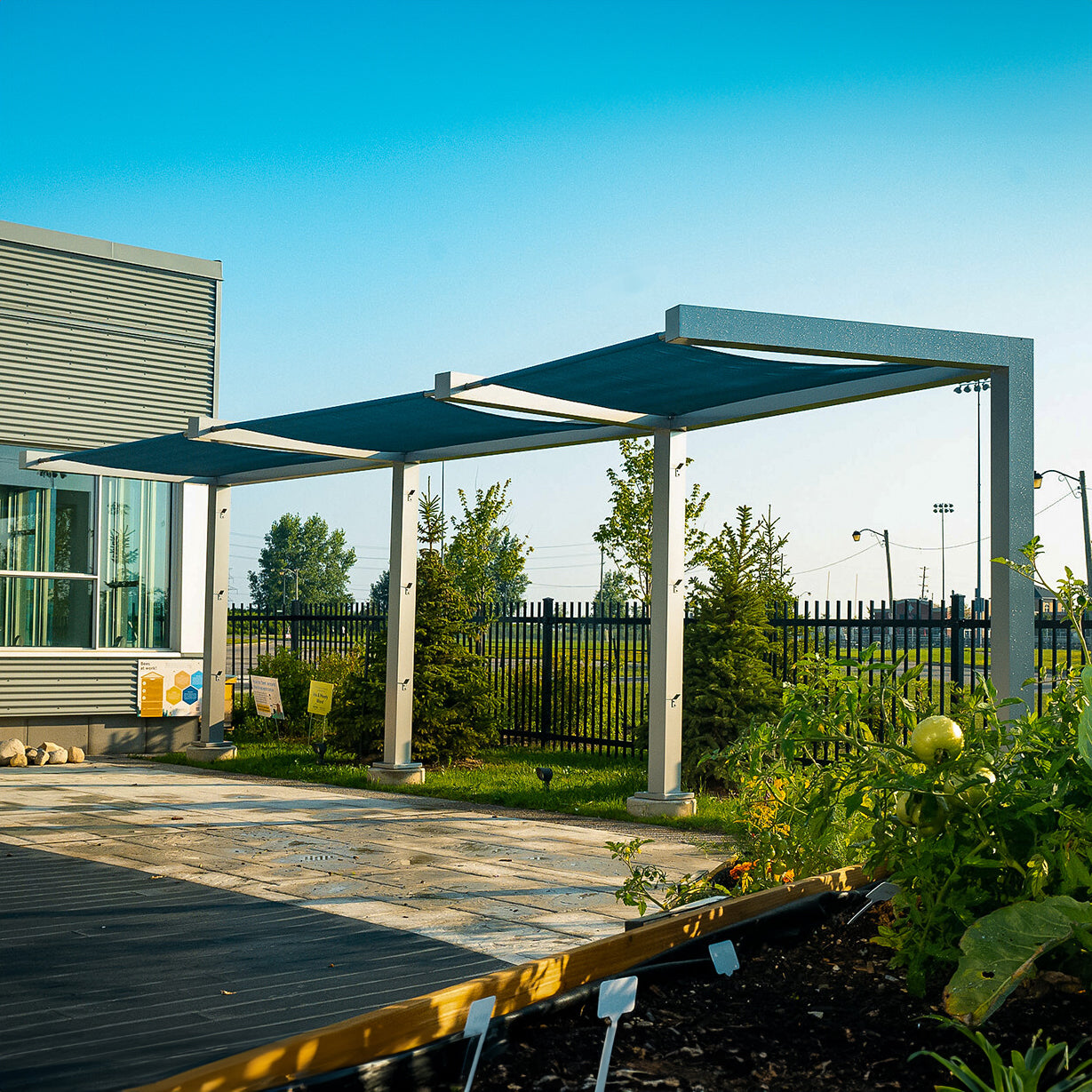

Introducing our ‘Grand Cantilever’ - when an unobstructed view is essential.  The all-aluminum base frame is constructed using 6” x 6” columns and cross beams.  In order to attain this cantilever effect, we have modified our proprietary Konnectr System to incorporate professionally engineered custom Konnectr Blocks to support the extended spans.  Between these spans, a variety of roof panels can be mounted.  Select from various aluminum purlins or Sunbrella Contour Tension Fabric panels.  In this case, columns and angled cross beams have been arranged along a curve with multi-coloured tension fabric panels providing the shade.  All connections are seamless and secured using stainless steel countersunk hardware.  Built-in mounting plates are hidden by decorative covers.  The Grand Cantilever frame has been designed to accept a variety of lighting, charging and heat options.  Custom sizes and configurations are available.


DIMENSIONS

Width: 270 in (685.8 cm)
Depth: 182 in (462.3 cm)
Height: 96 in (243.8 cm)






Please Note: Downloads for CSI Spec, CAD files and models for SketchUp and Revit are in process for all products. Online quoting is now available for registered users.
